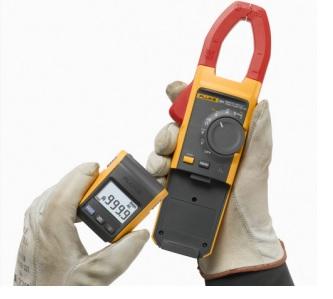

Clamp Meter vs. Digital Multimeter: Key Differences

This article explores the differences between clamp meters and digital multimeters, two essential tools for electrical measurements. Both devices come in analog and digital versions and are used for measuring current, but they have distinct features and applications.

Introduction

Both clamp meters and digital multimeters are indispensable for electrical work. While they can both measure current, they do so in different ways. A clamp meter essentially encompasses all the functionality of a digital multimeter, with the added ability to measure current without interrupting a circuit. Let’s delve into their specific features.

Clamp Meter

Here are the typical features of a clamp meter:

• Versatile Measurement: Clamp meters can measure AC voltage, DC voltage, resistance, capacitance, frequency, AC current, and DC current.
• Non-Contact Current Measurement: The most significant feature of a clamp meter is its ability to measure current by simply clamping around a wire. This eliminates the need to break the circuit.

Digital Multimeter

Here’s a breakdown of the typical features of a digital multimeter:

• Core Measurements: Digital multimeters are primarily used for measuring current (I), voltage (V), resistance (R), and impedance (Z).
• Digital Display: They present measurements in a digital format on an LCD screen, ensuring clear readings.
• Analog to Digital Conversion: Internally, digital multimeters utilize an ADC (Analog to Digital Converter) to convert analog readings into digital form.
• High Accuracy: Digital multimeters offer high accuracy compared to their analog counterparts.

Key Difference: Current Measurement

The crucial difference lies in how these devices measure current:

• Digital Multimeter: To measure current with a digital multimeter, the circuit path needs to be disconnected. The multimeter is then connected in series within the broken circuit. This can be inconvenient and potentially disruptive.
• Clamp Meter: In contrast, a clamp meter measures current by placing its jaw around the cable carrying the current. This allows for safe and easy measurements without breaking or disconnecting the circuit.

When to Use Which?

The non-contact current measurement of clamp meters makes them ideal in situations where:

• It’s challenging to break or disconnect a circuit.
• Safety is paramount, and avoiding contact with live wires is essential.

Digital multimeters are well-suited for situations where:

• Precise voltage, resistance, or impedance measurements are required.
• The circuit can be safely disconnected to measure current in series.

In conclusion, while both tools are valuable for electrical measurements, their distinct capabilities and methods of current measurement make them suitable for different applications. Choosing the right tool for the job will ensure accuracy and safety in your work.
