MIPI RFFE Interface: Versions 1.0 vs 2.0

This article explores the MIPI RFFE (RF Front End) Interface, comparing versions 1.0 and 2.0 and highlighting their key differences.

Introduction to MIPI RFFE

The MIPI Alliance maintains and publishes the specifications for the RF Front-End Control Interface (RFFE). They’ve released RFFE versions 1.0, 2.0, and most recently, 2.1. MIPI RFFE provides a standardized way to control various subsystems within an RF system. Think of components like:

• Power Amplifiers (PAs)
• Low-Noise Amplifiers (LNAs)
• RF Filters
• RF Switches
• Power Management Modules
• Antenna Tuners

This interface is designed to meet the demands of current and future mobile wireless devices.

Figure 1: A radio receiver using RFFE, DigRF, and eTrak interfaces.

As shown in Figure 1, the RFFE interface plays a crucial role alongside other interfaces like DigRF and eTrak. DigRF is used for communication between the baseband and RFIC in mobile handsets. The eTrak interface is a point-to-point connection between the radio transmitter and the Envelope Tracking Power Supply (ETPS).

RFFE was developed to handle the increasing complexity of front-end requirements, especially with technologies like LTE rel-11, LTE rel-12, and 5G, which utilize multiple Carrier Aggregation (CA) bands and antenna configurations.

What is the MIPI RFFE Interface?

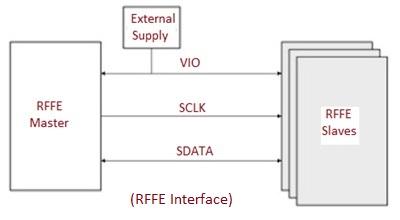

The MIPI RFFE interface operates using a point-to-multipoint architecture. It connects a master device to multiple slave devices on a shared bus. Here’s a breakdown of its key features:

• Compact, cost-efficient, and flexible: The RFFE interface is designed to be a two-wire control bus that is efficient in terms of cost, size, and adaptability.
• Single Master & Multiple Slaves: RFFE v1.0 supports a single master device that controls up to 15 slave devices on a single bus.
• Two Signal Lines: The interface uses two signal lines:
  • SCLK (Clock Signal): Controlled by the master device.
  • SDATA (Serial Data): Can be unidirectional or bidirectional depending on the slave device (write-only or read/write).
• VIO (Input/Output Supply): Provides the reference voltage and can be supplied externally or by the master device.

MIPI RFFE v1.0 Interface Features

Here are the key specifications of the MIPI RFFE v1.0 interface:

• Bus Speed: Supports up to 26 MHz.
• VIO: Supports either 1.8V or 1.2V.
• Address Space: Supports up to 16 bits for addressing.
• Master/Slave Configuration: 1 master and up to 15 slaves. Having a single master simplifies bus arbitration.
• Slave Device Configuration: Highly configurable slave devices with programmable unique IDs and user-defined group IDs for write commands.
• Error Checking: Uses parity bits for error detection.
• Command Support: Supports single-byte and multi-byte read and write commands.
• Broadcast Messages: Capable of sending broadcast messages to multiple slave devices.
• Soft Reset: Supports command-initiated soft resets.

MIPI RFFE v2.0 Interface Features

The MIPI RFFE v2.0 interface builds on v1.0 with these enhanced features:

• Increased Bus Speed: Supports up to 52 MHz, doubling the speed of v1.0.
• Multi-Master Support: Supports up to 4 master devices, which is essential for Carrier Aggregation (CA) system architectures.
• Interrupt Capable Slaves: Slave devices can now generate interrupts, enabling more efficient event-driven control.
• New Registers and Functions: Includes new reserved registers and functions to make hardware and software development easier.

Benefits of Using the RFFE Interface

The RFFE interface offers numerous advantages:

• Flexible: Can adapt to various RF front-end configurations.
• Scalable: Can accommodate the increasing complexity of modern wireless systems.
• Interoperable: Ensures seamless communication between different RF components.
• Low RF EMI: Minimizes electromagnetic interference within the device.
• Efficient Power Control: Enables optimized power management of RF components.
• Compact Design: Allows for smaller and more integrated designs.

Reference

MIPI Alliance, Inc. (https://www.mipi.org)
