Open Loop vs. Closed Loop Control Systems: Key Differences

Control systems are all around us, working tirelessly to achieve desired outputs through a carefully planned arrangement of components. These systems can be broadly categorized into two main types: open loop and closed loop. Let’s delve into the differences between these two fundamental control approaches.

What is a Control System?

At its core, a control system is a carefully orchestrated network of elements. Each element plays a specific role, contributing to the overall goal of producing a specific, desired output. Think of it like a well-rehearsed orchestra, where each instrument (element) plays its part to create a harmonious piece of music (the desired output).

Control systems come in two main flavors:

• Open Loop Control Systems
• Closed Loop Control Systems: Further divided into positive and negative feedback systems.

Let’s explore each of these types in detail.

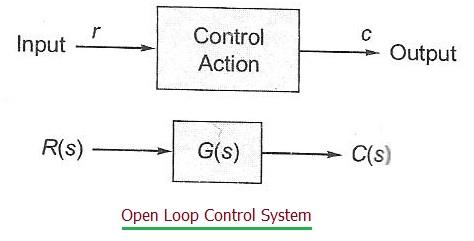

Open Loop Control Systems

• Simple and Straightforward: Open loop systems operate based on a predetermined input, with the system’s output not influencing the control action.
• No Feedback Mechanism: The output of the system is neither measured nor fed back for comparison with the input.
• Reliance on Initial Calibration: These systems work under the assumption that the system won’t encounter any disturbances. Their accuracy hinges on proper initial calibration.
• Control is Independent of Output: The system’s control characteristics are entirely independent of its output.

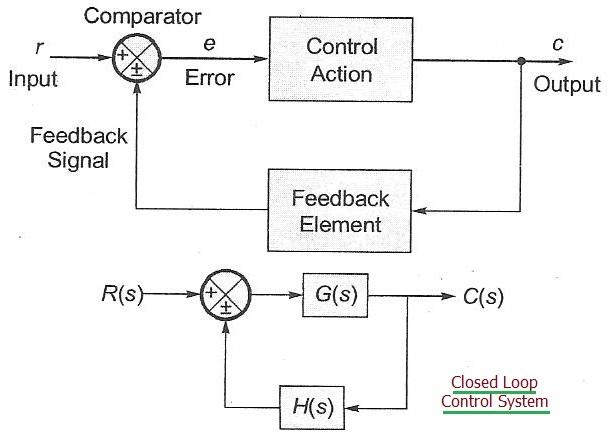

Closed Loop Control Systems

• Feedback Driven: In contrast to open loop systems, the control characteristics of a closed loop system heavily depend on the system’s output.
• Error-Based Control: These systems are also known as feedback control systems. They use an “error signal” (the difference between the input and the output) to drive the control action.
• Aiming for Accuracy: The primary goal of the feedback loop is to minimize the error between the desired input and the actual system output.
• Negative Feedback Advantages: Negative feedback, a common feature in closed-loop systems, brings several benefits:
  • Reduced sensitivity to parameter variations.
  • Lowered system gain by a factor of (1+GH).
  • Increased system bandwidth.
  • Reduced impact of internal disturbances.

Side-by-Side Comparison: Open Loop vs. Closed Loop

Here’s a table highlighting the key differences between the two:
