Understanding Grounding Systems: Single Point, Multi Point, and Hybrid

Grounding is a fundamental concept in electrical engineering, crucial for safety and proper operation of electronic equipment. This article explores the basics of grounding, its purposes, and different grounding system types, including single point, multi point, and hybrid grounding. We’ll also look at common grounding methods and materials used in test and measurement equipment.

What is a Grounding System?

Essentially, grounding is the connection between an electrical circuit or piece of equipment and the earth, or another conducting body that acts as a substitute for the earth. The system or equipment connected in this way is said to be “grounded.” This connection can also be considered as the link between a circuit and its 0-volt reference.

Why is Grounding Necessary?

Grounding serves several critical purposes:

• Preventing Shock Hazards: Grounding is vital in high-voltage distribution systems to prevent dangerous electrical shocks.
• Protection against Lightning and ESD: It provides a path for dangerous currents caused by lightning strikes or electrostatic discharge (ESD), diverting them away from sensitive equipment and personnel.
• Mitigating Electromagnetic Interference (EMI): Proper grounding can significantly reduce EMI, which can disrupt the performance of electronic circuits.
• Clearing Power Faults: Grounding facilitates the safe and efficient clearing of power faults, preventing damage and ensuring safety.

Grounding System Types

There are three main types of grounding systems, each suited for different applications:

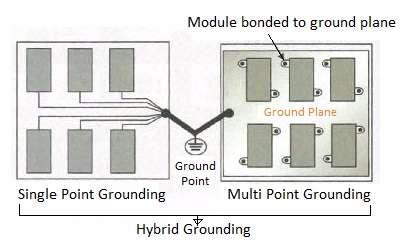

Single Point Grounding

In single-point grounding, each subsystem or module has its own dedicated ground connection. All these individual grounds are then connected to a single system ground point using simple wires. This method is generally suitable for low-frequency analog circuits.

Multi Point Grounding

In multi-point grounding, each subsystem or module is directly connected to a common, low-impedance equipotential ground plane as directly as possible. This type of grounding is preferred for high-frequency digital circuits because metal sheets offer lower impedance at these frequencies.

Hybrid Grounding

Hybrid grounding is a combination of both single-point and multi-point grounding. Grounding points from both systems are connected to a common point. This method is commonly used in mixed-signal circuit designs, which involve both analog and digital circuits, and therefore both low- and high-frequency components.

Grounding Methods and Materials in Test and Measurement

The following table outlines various grounding methods and materials commonly used in test and measurement equipment. This is often referred to as the “grounding hierarchy” and is essential for proper equipment installation.

The ground hierarchy also includes grounds for cables, transformer shields, DC returns, lightning protection, and AC power safety.

In conclusion, selecting the right grounding method is essential for the proper functioning and safety of electrical and electronic systems. Understanding the differences between single-point, multi-point, and hybrid grounding, as well as the materials and methods involved, is crucial for engineers and technicians alike.
