XRF vs XRD: Understanding the Differences

This article explores the differences between X-ray Fluorescence (XRF) and X-ray Diffraction (XRD), two powerful analytical techniques used to examine materials. While both utilize X-rays, they provide distinct types of information, making them complementary in many scientific and industrial applications.

Introduction

• Various non-destructive methods exist for chemical analysis, and X-ray techniques are prominent among them. These techniques include X-ray absorption, X-ray diffraction, and X-ray fluorescence.
• Both XRF and XRD rely on X-rays as both their source and detector.
• They both measure how a substance responds to X-ray interaction.
• These techniques are employed to gather measurements that help in identifying the composition of a material.

XRF | X-ray Fluorescence

• XRF is primarily used for quantitative elemental analysis. It tells you what elements are present in a sample and in what amounts.
• However, XRF doesn’t reveal how these elements are chemically combined (i.e., the compounds formed).
• XRF analyzers are commonly used in the field of chemistry.
• This technique is capable of measuring concentrations ranging from parts per million (ppm) to percentages for most elements.
• In essence, XRF is all about identifying and quantifying the elements within a sample.

XRD | X-ray Diffraction

• XRD provides information about compounds and phases present within a sample. It helps identify crystalline structures and how atoms are arranged.

• XRD does not directly tell you what elements form these compounds.

• XRD analyzers are widely used for quantitative mineral phase analysis, especially in the field of mineralogy.

• It provides a broad range analysis (from roughly 2% to 100%).

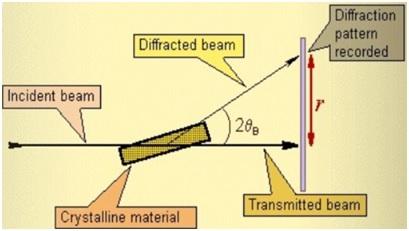

• XRD works by observing how X-rays are scattered when they interact with the crystalline structure of a material.

  Example: Consider diamond and graphite.

  • Both are made entirely of carbon.
  • XRF analysis would show that both contain 100% carbon.
  • However, XRD analysis reveals the different ways the carbon atoms are arranged, leading to the distinct properties of diamond and graphite.

Tabular Difference between XRF and XRD

The following table summarizes the key differences between XRF and XRD:

Conclusion

In conclusion, XRF and XRD are complementary techniques. Despite their differing working principles, they are used together for a more comprehensive understanding of a material’s composition and structure. XRF excels at identifying the elements present and their quantities, while XRD focuses on the arrangement of atoms and the compounds they form.
