Electric Power Measurement vs. Electrical Energy Measurement

It’s common to hear the terms “electric power” and “electrical energy” used interchangeably, but they represent distinct concepts. This article clarifies the difference between measuring electric power and electrical energy, explaining how each is calculated and measured.

Electric Power Measurement

Electric power is the rate at which electrical energy is transferred or used. Think of it as the “speed” at which electricity is doing work.

Power Dissipation in DC Circuits

In a direct current (DC) circuit, power dissipation is calculated using the following formulas:

• P = V * I
• P = V^2^ / R
• P = I^2^ * R

Where:

• V = Potential difference in volts (rms - root mean square)
• I = Current in amperes
• R = Resistance in ohms

Power Dissipation in AC Circuits

In an alternating current (AC) circuit, average power dissipation is calculated using:

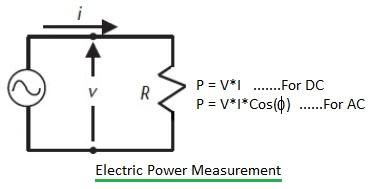

• Average Power, P = V _ I _ cos(φ)

Where:

• cos(φ) = Power Factor
• φ = Angle between voltage (rms) and current (rms)

How to Measure Electric Power

As noted above, electric power is proportional to energy consumption over time. The relationship is expressed as:

• Power = Energy / Time

Or, in other words:

• 1 Watt = 1 Joule / Second

You can measure electric power using a variety of instruments, including:

• Wattmeter
• Power meter
• Power analyzer
• Digital oscilloscope
• Voltmeter and Ammeter (used in combination)

Electrical Energy Measurement

Electrical energy is the total amount of work that electrical power can perform. It’s the accumulation of power over a period of time.

Calculating Electrical Energy

The fundamental relationship between energy, power, and time is:

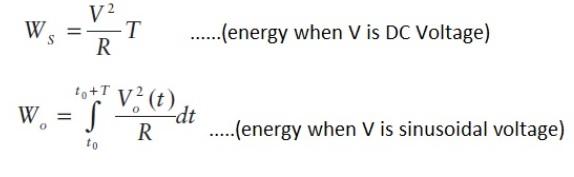

• Energy = Power x Time

For example, if you use a 20-watt light bulb for one hour (3600 seconds), the total energy consumption is:

• 20 watts * 3600 seconds = 72,000 Joules.

How to Measure Electrical Energy

Measuring electrical energy relies on measuring power consumption over time. This can be done with devices such as:

• Energy meter
• Smart electricity meters

These meters track the power consumption and accumulate the total energy used over a given period, usually in kilowatt-hours (kWh).

Key Differences Summarized

In conclusion, electric power is like the speed of your car, while electrical energy is the total distance you’ve traveled. Understanding the difference between these two concepts is crucial for properly measuring and managing electrical consumption.
