RF Testing: Equipment, Skills, and Essential Measurements

This article delves into the world of RF (Radio Frequency) testing, covering the essential equipment, skills, and measurements involved. It highlights common types of RF tests performed on RF components and systems.

Introduction

As RF systems transition from purely analog to digital or mixed-signal designs, testing these systems has become increasingly crucial. Numerous tests are conducted on RF Devices Under Test (DUTs) using sophisticated RF equipment to determine if they meet the required specifications.

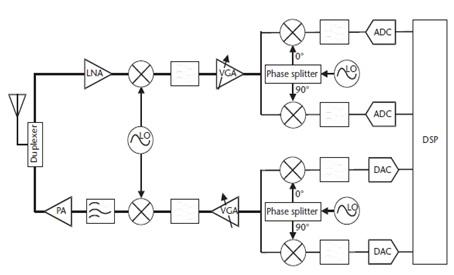

RF systems can be broadly divided into transmitter and receiver sections:

• Transmitter: This section typically includes a baseband transmitter (physical layer), a Digital-to-Analog Converter (DAC), an Intermediate Frequency (IF) modulator (e.g., an I/Q modulator), RF up-conversion stages, and a Power Amplifier (PA). The baseband transmitter incorporates Forward Error Correction (FEC) encoders, interleavers, data mapping, and baseband filtering.
• Receiver: This section consists of a Low Noise Amplifier (LNA), RF down-conversion stages, an IF demodulator (e.g., an I/Q demodulator), an Analog-to-Digital Converter (ADC), and a baseband receiver. The baseband receiver performs baseband filtering, data de-mapping, de-interleaving, and FEC decoding.
• Both Sections: Both transmitter and receiver sections often employ Automatic Gain Control (AGC) to manage the dynamic range of signals.
• Antenna: Used for transmitting and receiving RF signals during over-the-air (OTA) testing.

RF up-conversion converts the modulated IF signal from the I/Q modulator into a modulated RF signal. Conversely, RF down-conversion transforms a modulated RF signal back into a modulated IF signal. The I/Q modulator processes baseband I/Q data to produce a modulated IF output, while the I/Q demodulator takes the modulated IF and extracts the I/Q baseband data. Filtering helps to refine the bandwidth of the RF system, ensuring it meets the required Bit Error Rate (BER).

Types of RF Testing

RF testing is categorized based on the lifecycle stage of the RF DUT, often referred to as radio conformance tests:

• Prototype Testing: Conducted at both unit/module and system levels.
• Production Testing: Involves testing multiple DUTs to verify that RF units meet the design specifications before deployment or shipment.
• Environment and Reliability Tests: Includes climate tests like temperature, humidity, and altitude, as well as bump and accelerated life tests. QM 333 charts are frequently used to monitor RF testing at various environmental conditions.
• Field Testing: Performed on prototype systems after installation to confirm short-term and long-term stability.

RF Equipment and Required Skills

RF engineers need a specific skillset to meet the expectations of their companies:

• RF Domain Skills: Expertise in RF design, transmission line concepts (like S-parameters), and digital RF communication systems is essential.
• RF Test Equipment Proficiency: Familiarity with RF signal generators, signal analyzers, spectrum analyzers, and power meters is a must.
• Programming Language Skills: Knowledge of languages like C, C++, MATLAB, or Labview may be required. For automation, Python is often used to develop or utilize automation tools.
• Communication Skills: Both written and verbal skills are vital for effective collaboration and reporting.

RF Test Equipment

Here’s a look at common RF test

• Spectrum Analyzer: A versatile tool for measuring frequency versus power, helping identify frequencies, spurious signals, and harmonics.
• Signal Generator: Used to generate baseband I/Q or modulated RF signals. It’s crucial for testing the receiver functionalities of RF DUTs. Signal generators can be software-based, hardware-based, or a combination of both.
• Signal Analyzer: Analyzes baseband I/Q or modulated RF signals to test the transmitter functionalities of RF DUTs. Like signal generators, they can be software, hardware, or hybrid.
• Power Meter: Used with various power sensors to measure peak and average power of RF signals, typically in dBm or dBW. Power meters are available for various frequency ranges.
• Other Equipment: Other specialized equipment includes noise figure meters, network analyzers, and noise dosimeters.

RF Measurements during RF Testing

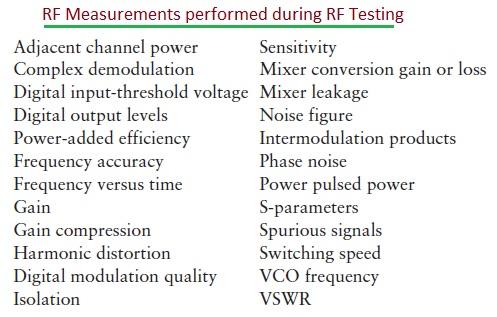

The image above illustrates common RF measurements performed during various stages of the RF DUT lifecycle. These measurements are crucial for ensuring the performance and reliability of RF systems.
