Range vs. Span: Understanding Measurement Terminology

When working with measurement instruments, especially in fields like electronics and signal processing, you’ll often encounter the terms “range” and “span.” While they’re related, they represent different aspects of an instrument’s capabilities. Let’s break down what each term means and how they differ.

Range Defined

The range of an instrument defines the operational limits within which it’s designed to accurately measure, indicate, or record a variable. Think of it as the “playing field” of the instrument. It’s specified by both a lower and an upper limit. The instrument is expected to function correctly and provide reliable data within this range.

For instance, a thermometer might have a range from -20°C to 100°C. This means that the thermometer is designed to measure temperatures accurately within that particular range.

Span Defined

The span, on the other hand, is the algebraic difference between the upper and lower limits of the range. It essentially tells you the total “width” of the instrument’s measurement capabilities.

Using the same thermometer example, its range is from -20°C to 100°C. Therefore, the span of this thermometer would be 120°C (100°C - (-20°C) = 120°C).

Illustrative Example

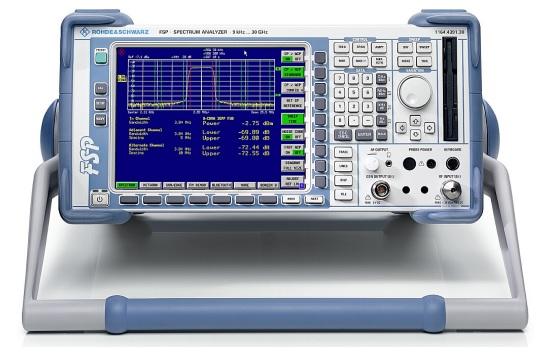

Let’s consider a spectrum analyzer used to measure radio frequencies.

Suppose you need to measure frequencies between 3.7 GHz and 4.2 GHz. Here are two ways to achieve this using a spectrum analyzer:

Option 1: Setting the Range

• You could directly set the range with a start frequency of 3.7 GHz and a stop frequency of 4.2 GHz. In this scenario, you’re telling the analyzer to focus its measurements specifically between those lower and upper limits.

Option 2: Setting the Center Frequency and Span

• Alternatively, you can define the measurement by its center frequency and span.
  • Calculate the center frequency: (3.7 GHz + 4.2 GHz) / 2 = 3.95 GHz or 3950 MHz.
  • Calculate the span: 4.2 GHz - 3.7 GHz = 0.5 GHz or 500 MHz.
  • So, you’d set the analyzer’s center frequency to 3950 MHz, with a span of 500 MHz.

Key Differences Summarized

• Range: Defines the absolute operational limits (lower and upper) of the instrument.
• Span: Defines the total difference or width of the measurement window (upper limit - lower limit).
• Range specifies the start and end points of the measurement, whereas span gives you the total width of that measurement.

Essentially, the range gives you the boundaries of the measurement, while the span provides you with the size of that boundary. Understanding both is crucial to effectively use measurement instruments.
