Venturi Flume vs. Venturi Meter: Key Differences

This article will explore the distinctions between Venturi flumes and Venturi meters, two devices used for flow measurement, but in very different contexts. Let’s break down their characteristics and applications.

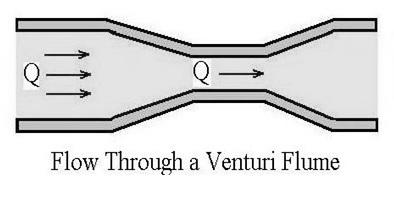

Venturi Flume

• What it is: A Venturi flume is essentially an open channel flow constriction designed to create critical flow. This constriction causes a drop in the hydraulic grade line, resulting in a critical depth that can be measured to determine flow rate.

• Usage: Venturi flumes are typically employed for measuring very large flow rates, often in the millions of cubic units. Think of applications in large-scale water management, like irrigation canals or river systems.

• Measurement: Crucially, Venturi flumes measure flow in meters. The discharge is determined by taking two measurements: one upstream of the constriction and another at the throat (the narrowest point).

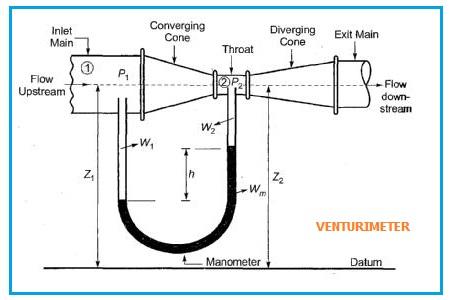

Venturi Meter

• What it is: A Venturi meter is a device designed for measuring flow rate within a closed pipe system.

• Principle: It operates based on Bernoulli’s principle, which relates fluid velocity and pressure.

• Orientation: Unlike flumes, Venturi meters can be installed in any orientation – vertical, horizontal, or inclined – making them versatile for various piping setups.

• Specification: Venturi meters are typically specified by their inlet diameter and throat diameter.

Key Differences Summarized

Here’s a table that highlights the core differences between these two flow measurement devices:
