Amplitude Modulation vs. Angle Modulation: A Detailed Comparison

Modulation is a crucial technique used to transmit information, such as voice, data, and video, over long distances. It works by changing the parameters of a carrier signal based on the information we want to send. This helps combat interference, noise, and fading, ensuring a clearer signal. Any modulation process involves two inputs: the baseband or modulating signal (the information) and the carrier signal. The result is a single output known as the modulated signal.

Here, we’ll explore the differences between two major types of modulation: amplitude modulation and angle modulation.

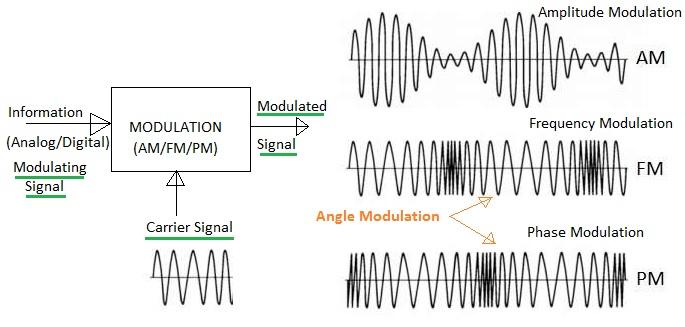

Understanding Amplitude and Angle Modulation

The core difference lies in what aspect of the carrier signal is modified:

• Amplitude Modulation (AM): The amplitude of the carrier signal is varied in proportion to the modulating signal.
• Angle Modulation: Either the frequency or the phase of the carrier signal is varied in response to the modulating signal. When the frequency is varied, it’s called Frequency Modulation (FM), and when the phase is varied, it’s called Phase Modulation (PM).

Let’s break down the key differences further:

Amplitude Modulation vs. Angle Modulation: A Comparison

Applications

Both AM and angle modulation techniques are widely used in various communication systems, including:

• TV sound transmission
• Mobile radio
• Radio broadcasting
• Microwave/Satellite communication
• Cellular radio

Key Takeaways

• AM is simpler to implement but more susceptible to noise.
• Angle modulation (FM and PM) offers better noise immunity but is more complex.
• The choice between AM and angle modulation depends on the specific application and its requirements, balancing simplicity and noise performance.
