Feedback vs. Feedforward Control: A Detailed Comparison

This article delves into the distinctions between feedback and feedforward control systems, outlining their respective advantages and disadvantages. Let’s explore how each approach tackles process control.

Feedback Control System

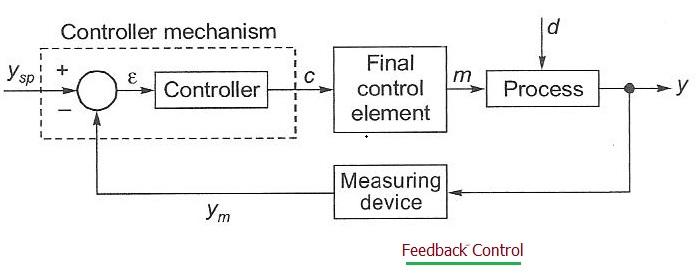

In a feedback control system, the system’s output is constantly monitored and compared against the desired input. If a discrepancy arises, an error signal is generated and sent to the controller. The controller then works to adjust the process, using a final control element, to minimize this error and bring the output back to the desired level. Think of it like a thermostat: it monitors the room temperature and adjusts the heating or cooling to match the set temperature. The diagram above illustrates the generalized process within a feedback control loop.

Advantages of Feedback Control Systems

• No Disturbance Measurement Required: Feedback systems don’t need to identify or measure specific disturbances affecting the process.
• Insensitivity to Modeling Errors: They are relatively unaffected by inaccuracies in the system model.
• Insensitivity to Parameter Changes: Feedback control systems are robust against variations in system parameters.

Disadvantages of Feedback Control Systems

• Reactive, Not Proactive: These systems react after the disturbance has impacted the system’s output.
• Poor Performance with Slow Processes: They are not ideal for slow processes or systems with significant dead time (a delay between input and output response).
• Potential for Instability: In some cases, feedback loops can introduce instability in the closed-loop response.

Feedforward Control System

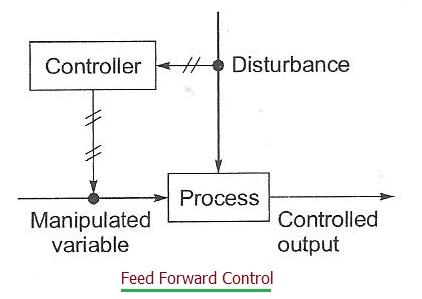

A feedforward control system operates differently. Instead of reacting to the output, it measures disturbances directly and takes preemptive control actions to counteract their impact on the process output. The image above represents the feedforward control approach. By sensing and correcting disturbances before they affect the process, feedforward control aims to eliminate their impact altogether. It’s an anticipatory method, acting beforehand.

Advantages of Feedforward Control Systems

• Proactive Response: Feedforward control acts before the disturbance has a chance to affect the system’s output.
• Suitable for Slow Processes: This approach works well for slow systems or those with significant dead time.
• No Instability Introduction: Feedforward control does not introduce instability in the closed-loop response.

Disadvantages of Feedforward Control Systems

• Requires Disturbance Identification: It needs to identify and directly measure all potential disturbances.
• Cannot Handle Unmeasured Disturbances: Feedforward systems struggle with disturbances that are not measured or accounted for.
• Sensitivity to Parameter Variations: They are susceptible to changes in the process parameters.
• Requires Good Process Model: A good understanding of the process model is necessary for effective feedforward control.

In conclusion, the choice between feedback and feedforward control depends heavily on the specific application, process characteristics, and the nature of the disturbances involved. Each system has its strengths and limitations, making them suitable for different scenarios.
