Wireless Sniffer Basics: Zigbee, WiFi, Bluetooth, GSM, LTE, IoT

This page covers the basics of wireless sniffers with a block diagram and its benefits. It also lists manufacturers of wireless sniffers used for various technologies including WiFi, Bluetooth, Zigbee, Z-Wave, LTE, GSM, and IoT wireless packet analysis.

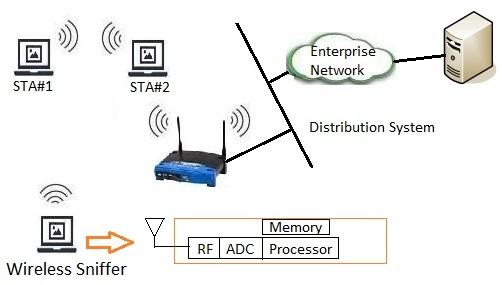

Figure 1 depicts a wireless sniffer used to sniff WiFi signals in a WLAN/WiFi network. As shown, it can be used to sniff or analyze WLAN packets exchanged between an AP (Access Point) and STAs (Stations).

There are two types of analyzers:

• Offline Analyzers: These are used to analyze offline stored data. They are standalone applications and don’t require any RF hardware. They can be installed on any desktop or laptop.
• Online Analyzers: These run on hardware consisting of RF components, ADCs, memory, and other necessary hardware. They are used to analyze over-the-air (OTA) wireless packets. Therefore, an online application with the required hardware is known as a wireless sniffer, which analyzes OTA packets.

Wireless Sniffer Architecture

Typically, a wireless sniffer is composed of an RF receiver, ADC (Analog-to-Digital Converter), memory, and a microprocessor/microcontroller.

1. RF Receiver: Converts the received RF signal to a baseband signal.
2. ADC: Converts the baseband signal from its analog form to digital.
3. Memory: The microprocessor/microcontroller writes the digital data into memory.
4. Microprocessor/Microcontroller: Analyzes the samples stored in memory using an appropriate baseband application, according to the standard device requirements (e.g., WLAN, Zigbee, Bluetooth).

For example, to sniff WiFi signals, a WiFi-based wireless sniffer is needed. To sniff Bluetooth signals, a Bluetooth-based wireless sniffer is needed, and so on.

Manufacturers of Wireless Sniffers (Zigbee, WiFi, Bluetooth, GSM, LTE, Z-Wave)

The following table lists wireless sniffers for WiFi, Bluetooth, LTE, GSM, Zigbee, and Z-Wave.

Benefits of wireless sniffers

Following are some of the advantages of wireless sniffers used for various standards including IEEE and 3GPP.

1. Network Traffic Analysis : Captures and analyzes wireless packets for troubleshooting and optimization.
2. Security Monitoring : Detects unauthorized access points, rogue devices, and network vulnerabilities.
3. Performance Optimization : Identifies congestion, interference, and latency issues for better network performance.
4. Wireless Protocol Debugging : Helps developers analyze and refine communication protocols like Wi-Fi, Bluetooth and Zigbee.
5. Intrusion Detection : Assists in identifying hacking attempts, packet injections, and suspicious activities.
6. Compliance Auditing : Ensures networks meet security and regulatory standards.
7. Real Time Monitoring : Provides live packet capture and deep packet inspection for proactive network management.
8. User Behavior Analysis : Helps in understanding traffic patterns and improving wireless service delivery.

Conclusion

A wireless sniffer is a powerful tool for network security, performance monitoring, and troubleshooting. By capturing real time data, it enhances network reliability, detects security threats, and ensures efficient wireless communication across various applications.
