Orifice Plate: Advantages and Disadvantages

This article explores the pros and cons of using orifice plates for flow measurement. Orifice plates, similar in principle to venturimeters, are commonly employed to determine volumetric flow rates. Let’s delve into their benefits and drawbacks.

Types of Orifice Plates

Before we get into the specifics, it’s worth noting that there are several types of orifice plates, including:

• Concentric orifice plates
• Eccentric orifice plates
• Segmental orifice plates
• Quadrant edge orifice plates

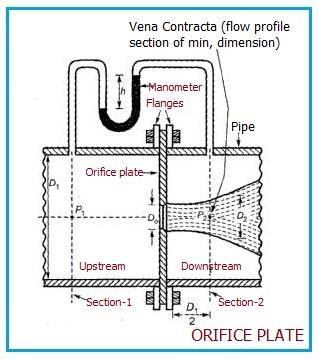

What does an Orifice Plate look like?

Here is an example of one:

Advantages of Orifice Plates

Here are some key benefits of using orifice plates:

• Lower Initial Cost: Orifice plates are typically less expensive to purchase and install than other flow measurement devices. This makes them a budget-friendly option, especially in applications where cost is a major consideration.
• Smaller Size: Their compact design means they require less space for installation, which is a significant advantage in systems with limited room.
• Higher Accuracy: When installed and maintained correctly, orifice plates can provide surprisingly accurate flow rate measurements, ensuring reliable data for process control and analysis.

Disadvantages of Orifice Plates

Despite their advantages, orifice plates do have certain drawbacks:

• Low Discharge Coefficient: Orifice plates have a lower discharge coefficient compared to venturimeters. This means they are less efficient at converting pressure differences into flow rate readings.
• Lower Sensitivity: As a direct result of the lower discharge coefficient, they exhibit reduced sensitivity compared to venturimeters. This can lead to less accurate measurements in situations where precise readings are needed.
• High Head Loss: A significant disadvantage is the substantial head loss they create. This head loss, ranging from about 60% to 70%, can cause energy loss and may impact overall system performance.
• Measurement Inaccuracy Due to Wear: Over time, the edges of the orifice plate can erode or corrode, which can introduce inaccuracies in flow measurements. Regular inspection and maintenance are essential to mitigate this.

In conclusion, orifice plates present a cost-effective and compact solution for flow measurement, but their limitations like lower sensitivity and high head loss should be taken into account. Proper selection depends on the specific requirements of your application.
