pH Sensor Probe vs. pH Meter: Understanding the Difference

When it comes to measuring the acidity or alkalinity of a solution, we often encounter two key components: the pH sensor probe and the pH meter. While they work together, they serve distinct roles. Let’s explore the differences between these two essential tools in chemistry.

What is pH?

Before diving into the devices, let’s briefly touch on pH itself. pH is a mathematical scale used to measure the acidity or basicity (alkalinity) of a solution. The scale ranges from 0 to 14, where:

• 0-6.9: Indicates an acidic solution
• 7: Indicates a neutral solution
• 7.1-14: Indicates an alkaline (basic) solution

You can learn more about how pH values are measured here.

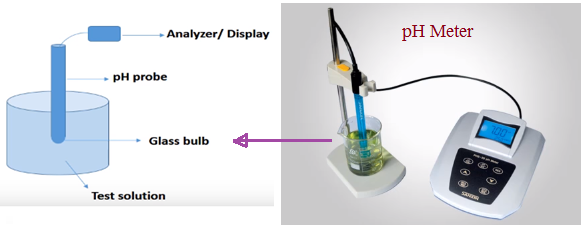

The pH Meter

The pH meter is an electronic device that provides a digital reading of a solution’s pH value. It’s more than just a probe; it’s a complete measurement system.

• Function: The pH meter is used to measure the pH of a liquid, indicating its level of acidity or alkalinity.
• Components: A typical pH meter consists of a measuring probe (containing the sensor) and a display panel. The probe is the part that comes into contact with the liquid, while the display shows the measured pH value.
• Measurement Principle: pH meters work by measuring the concentration of H+ ions in a solution. Acidic solutions have a higher concentration of positively charged hydrogen ions compared to alkaline solutions.
• Voltmeter Functionality: A pH meter functions like a voltmeter, measuring small voltage differences (typically in millivolts) generated by the electrodes within the probe.
• Calibration: For accurate results, pH meters require calibration before each measurement. This is typically done using solutions with known pH values.

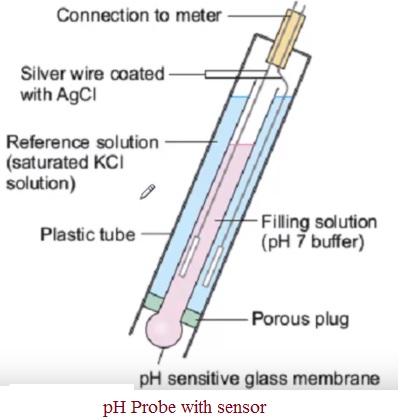

The pH Sensor Probe

The pH sensor probe is the component responsible for detecting the pH of the solution. It’s the part that makes direct contact with the sample.

• Structure: Typically, the pH probe has a rod-like structure, often made of glass, with a bulb at the bottom.
• Sensor Location: The bulb is the sensitive part of the probe, and it houses the actual pH sensor.
• Usage: To measure pH, the probe is dipped into the solution.
• How it Works: The probe houses two electrodes, a glass electrode and a reference electrode. The glass electrode is responsive to changes in hydrogen ion concentration, generating a voltage. The reference electrode provides a stable voltage for comparison.

Key Differences Summarized

In essence, the pH sensor probe is the detector, while the pH meter is the complete system that includes the detector, signal processing, and display capabilities. They work in tandem to provide accurate pH readings.
