Radiometer vs. Spectrometer vs. Spectroradiometer: Key Differences

When it comes to measuring light and color, several instruments are at our disposal. Radiometers, spectrometers, and spectroradiometers are all used for this purpose, but they each operate in slightly different ways and offer unique capabilities. Let’s break down the key differences between these instruments.

Radiometer

What It Does

A radiometer is primarily designed to measure the amount of electromagnetic (EM) energy present within a specific wavelength range. Think of it as a tool for gauging the overall intensity of light or radiation in a given band.

Key Features

• Measures EM Energy: Radiometers quantify the total energy, typically in Watts.
• Focus on UV and IR: They are often used to measure ultraviolet (UV) and infrared (IR) light, which fall outside the visible spectrum.
• Heat Detection: Radiometers can detect heat on surfaces, which is useful in applications like identifying overheating motors.
• Simple Design: They typically use a single sensor and filters to isolate the desired wavelength range.
• Cost-Effective: Radiometers are generally inexpensive and portable.

Spectrometer

What It Does

A spectrometer, on the other hand, measures light energy by breaking it down into its individual wavelength components. This allows for a detailed analysis of the light’s spectral composition.

Key Features

• Wavelength Analysis: Spectrometers use optical gratings and multiple sensors to separate light into different wavelengths.
• Requires Additional Components: They often need to be used with a camera or cosine corrected head for complete measurements and are not a complete stand-alone setup
• Precise Measurement: Spectrometers can achieve highly accurate measurements using up to 2048 sensors.
• Modular Design: They are often more modular and flexible compared to radiometers.
• Measurement Units: Spectrometers measure light in units like W/m^2^SRnm or W/m^2^*nm.

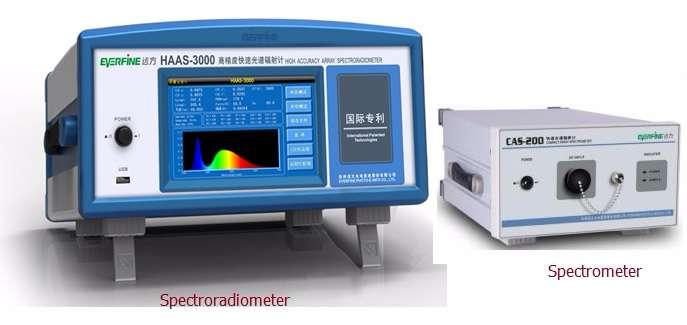

Spectroradiometer

What It Does

A spectroradiometer combines the functionalities of both radiometers and spectrometers. It measures spectral radiance, essentially measuring the power of light emitted or reflected from a surface across a range of wavelengths.

Key Features

• Spectral Radiance Measurement: Spectroradiometers are designed for precise measurements of irradiance across a broad range of the light spectrum.
• Visible Light Range: They typically measure light in the range from 380 nm to 780 nm, covering the entire visible spectrum.
• High Accuracy: Spectroradiometers offer very high accuracy in their measurements.
• Independent System: Unlike spectrometers, they often work as standalone systems without requiring a PC connection.
• Portable: Many spectroradiometers are designed for portable use.

Key Differences Summarized

In essence, if you need to measure the total light intensity or heat, a radiometer is a good choice. For analyzing the specific wavelengths of light, a spectrometer is required. And if you need to measure spectral radiance with high accuracy, a spectroradiometer is the ideal instrument.
