Advantages and Disadvantages of Logic Analyzers

This page explores the pros and cons of using a logic analyzer. We’ll delve into the benefits and drawbacks of this essential tool for digital circuit analysis.

Introduction to Logic Analyzers

Logic analyzers are designed for the simultaneous measurement of multiple channels or signals. They capture these signals and display them on a screen, allowing engineers to see the interactions within a digital system or circuit. One of their key features is advanced triggering, making them incredibly useful for examining the timing relationships between different signals.

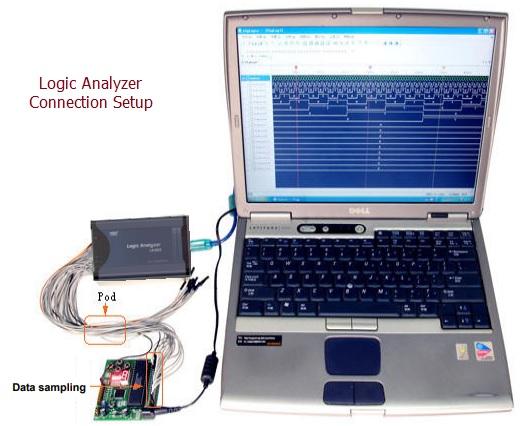

Essentially, a logic analyzer requires both hardware and software to function, as illustrated in Figure 1.

Logic analyzers also offer dedicated bus and protocol analysis capabilities. This means they can analyze different bus protocols, such as UART, SPI, I²C, and SSI. They typically use a USB 2.0 high-speed interface with Plug and Play (PnP) support for easy connectivity.

Benefits or Advantages of Logic Analyzers

Here’s a look at the advantages that make logic analyzers a valuable tool:

• Multi-Channel Measurement: Unlike oscilloscopes, logic analyzers excel at measuring multiple channels simultaneously. This is particularly handy when debugging microprocessor or microcontroller-based boards, where you need to track numerous signals at once. Standard logic analyzers often support 16 or more channels, and advanced models can handle up to 300!

• High Performance: Logic analyzers are designed for high-speed digital signal analysis, ensuring you don’t miss crucial details in fast-paced digital circuits.

• Lower Costs: Generally, logic analyzers can be a more cost-effective solution compared to other advanced measurement tools, especially for multi-channel digital analysis.

• Portability: Many logic analyzers are designed to be lightweight and easy to carry, making them convenient for both lab and field work.

• Ease of Use: Modern logic analyzers are generally user-friendly, with intuitive interfaces that make them easy to set up and operate.

• Expandability: Many logic analyzers offer the flexibility to expand their capabilities through add-ons and software updates.

Drawbacks or Disadvantages of Logic Analyzers

Now, let’s consider the limitations of logic analyzers:

• Limited Analog Measurement: Logic analyzers are primarily designed for digital signal analysis. They do not focus on the analog characteristics of signals or their specific voltage values. This means they are not suitable for analog measurements, unlike oscilloscopes, which are specifically designed for such tasks. If you need to analyze the voltage levels or waveforms of signals, an oscilloscope is the more appropriate tool.
