T&M Analog vs. Digital Sensors: Key Differences Explained
This article dives into the world of sensors, comparing analog and digital types, and highlighting their distinct characteristics. We’ll explore their definitions, provide real-world examples, and ultimately, pinpoint the differences that make each suitable for specific applications.
What is an Analog Sensor?
An analog sensor is a device that produces a continuous output signal, typically a voltage, which is directly proportional to the quantity being measured. Think of it as a smooth, flowing representation of the physical world. These sensors are often used to measure things that naturally vary in a continuous manner, like pressure, temperature, or displacement.
Definition: An analog sensor provides a continuous output, often in the form of voltage, which corresponds to the measured quantity.
Example: A classic example of an analog sensor is a thermocouple, which continuously measures temperature. If the output of an analog sensor is too weak to be measured accurately, an amplifier is often employed to boost the signal. However, analog signals often need further processing, which is more easily done in the digital domain. This is where Analog-to-Digital Converters (ADCs) come in, transforming the analog signal into a digital representation.
What is a Digital Sensor?
A digital sensor, on the other hand, provides a discrete output, usually in the form of binary digital values (1s and 0s). These sensors generate a non-continuous, stepped signal. Imagine a series of on/off switches rather than a smooth flow.
Definition: A digital sensor provides a discrete output, typically represented as binary 1s and 0s.

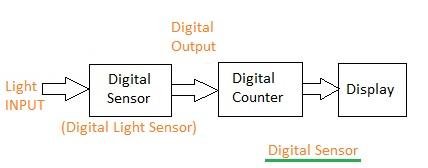

Example: A digital light sensor, which uses a rotating disc to generate a pulse of either logic 0 or logic 1, is a great example. These pulses can be counted by a counter, and the final result can be displayed on a numeric display. Digital sensors often boast greater resolution and higher accuracy compared to their analog counterparts. Furthermore, they don’t usually require the use of amplifiers or filters, simplifying their implementation. These advantages make digital sensors suitable for a wider array of applications.
Analog vs. Digital Sensor: A Detailed Comparison
The following table summarizes the key differences between analog and digital sensors:
| Specifications | Analog sensor | Digital Sensor |
|---|---|---|
| Output | Infinite number of values (i.e., continuous) | Finite number of values (i.e., discrete steps or digital) |
| Accuracy | Low | High |
| Application | Ideal for reading continuous varying parameters like temperature and humidity. | Ideal for reading discrete values like push buttons, line follower robots. |
| Examples | Thermocouple, temperature sensor, gyroscope | Digital light sensor, push button, distance sensor, line follower sensor |
