SIL vs. HIL Testing: A Detailed Comparison

When it comes to validating embedded systems, different testing methods are employed before the final deployment on the actual device. These methods range from model testing in simulation to more advanced techniques like Software in the Loop (SIL) and Hardware in the Loop (HIL) testing. This article will delve into the differences between SIL and HIL testing.

Types of Testing for Embedded Systems

Here’s a quick overview of the common testing methods:

• Model testing in simulation: This involves testing the system’s model in a simulated environment.
• Software in the loop testing: Focuses on evaluating the software component of the system.
• Processor in the loop testing: Tests the software on a simulated processor.
• Hardware in the loop testing: Incorporates real hardware components in the testing process.

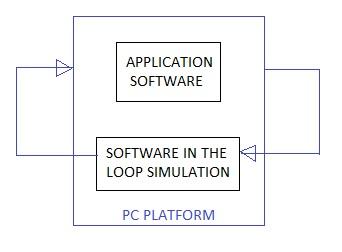

Software in the Loop (SIL) Testing

SIL testing is primarily concerned with evaluating the software that’s been written or generated. Here’s a breakdown:

• Co-simulation: The software is co-simulated on a host machine.
• Input Vectors: Input data is derived from either the requirement document or from another executable model.
• Data Reuse: SIL testing reuses the test data and model infrastructure originally used in “model testing in simulation.”
• Code Examples: This method is applicable to both handwritten code and code generated by tools.
• Graphical Implementations: SIL testing is particularly useful for graphical implementations (like LabVIEW) of existing codes written in languages such as MATLAB, C, or C++.

Hardware in the Loop (HIL) Testing

HIL testing takes things a step further, focusing on real-time verification of the design.

• Real-Time Verification: Unlike other methods used for non-real-time checks, HIL testing is designed for real-time verification.
• Real-Time Behavior: It allows for the testing of the system’s real-time behavior, which is crucial for many embedded applications.
• Lab Environment: HIL testing is typically conducted in a lab setting using prototype hardware before the final system integration and field testing.
• PC-Based Target: The model under testing is executed on a PC-based target computer using card drivers, a real-time kernel OS, a host-target interface, data logging, and parameter tuning capabilities.
• Real-Time Monitoring: The running code can be monitored and verified in real-time.

Key Differences Summarized

Here’s a quick summary of the key differences:

• SIL testing is primarily about validating the generated software code against the model. It ensures that the code behaves as intended based on simulations.
• HIL testing, on the other hand, focuses on verifying the software algorithm within a real-time environment. It uses prototype hardware and real-time operating systems to closely mimic real-world conditions.

Conclusion

In essence:

• Software in the loop (SIL) testing validates that the generated code behaves the same way it did in model simulation. It focuses on code correctness in a simulated environment.
• Hardware in the loop (HIL) testing validates the software algorithm with all the desired real-time behavior. It focuses on the real-time performance of the system using a hardware platform.
