Swirl Flowmeter: Advantages and Disadvantages

This article explores the pros and cons of swirl flowmeters, detailing their benefits and drawbacks. We’ll start by understanding what a swirl flowmeter is and how it works.

What is a Swirl Flowmeter?

Introduction:

  • Swirl flowmeters are versatile devices used to measure the flow of a variety of substances, including liquids, gases, and steam.
  • They share similarities with vortex flowmeters but have a slightly different construction.
  • Like vortex flowmeters, swirl flowmeters can directly measure the mass flow of dry saturated steam.
  • The operating principle is based on pressure variations caused by flow obstruction, similar to the vortex principle.
  • In a swirl flowmeter, the fluid flows through fixed spiral vanes. This forces a spiral flow pattern throughout the entire pipe.
  • The frequency of the fluid’s rotation is directly related to the flow rate.
  • A sensor detects the speed of this rotation, and this information is then sent to the flowmeter’s electronic circuits.
  • Swirl flowmeters are capable of operating in demanding process and environmental conditions, offering an accuracy of around +/- 0.2%. For comparison, vortex flowmeters typically achieve an accuracy of approximately +/- 0.75% in liquids, gases, and steam.

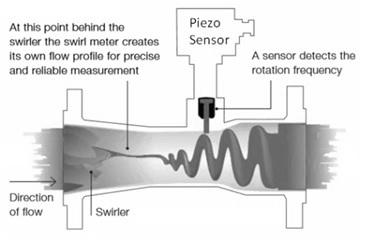

Swirl Flowmeter

Benefits or Advantages of Swirl Flowmeter

Here are the key advantages of using a swirl flowmeter:

  • No Moving Parts: The absence of moving parts contributes to increased reliability and reduced maintenance needs.
  • Short Inlet and Outlet Sections: Swirl flowmeters require very short straight pipe sections upstream and downstream, which simplifies installation and saves space.
  • Versatile Application: They are suitable for measuring the flow of gases, liquids, and steam, making them a flexible choice for diverse applications.
  • Excellent Repeatability: Swirl flowmeters offer consistent and reliable measurements.
  • Unaffected by Process Conditions: Changes in temperature, pressure, and density have minimal impact on the accuracy of the readings.

Drawbacks or Disadvantages of Swirl Flowmeter

Despite their advantages, swirl flowmeters have some limitations:

  • Pressure Drop: The flow of fluid through the meter creates a pressure drop, which can affect the overall system performance.
  • Minimum Reynolds Number Requirement: A minimum Reynolds number is necessary for the flowmeter to function properly, meaning it may not be suitable for very low flow rates.
