Network Analyzer Terminologies: A Glossary

network analyzer
s-parameters
transmission coefficient
insertion loss
return loss

This article provides a glossary of common terms used when working with scalar and vector network analyzers. We’ll cover concepts like transmission coefficient, insertion loss, gain, reflection coefficient, return loss, and S-parameters.

Let’s start by visualizing a typical network analyzer setup.

Testing DUT using Network Analyzer

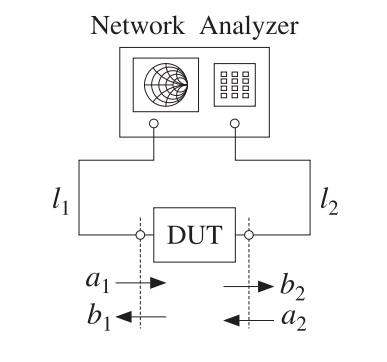

Figure 1: A network analyzer (specifically, a Keysight 8720D) is shown here, connected to a two-port Device Under Test (DUT). The diagram illustrates the incident wave (a1), transmitted wave (b2), and reflected waves (b1 and a2).

Key Terminologies

Transmission Coefficient

The transmission coefficient quantifies how much power successfully travels through the Device Under Test (DUT). It’s a ratio that essentially tells you the efficiency of power transfer.

Transmission coefficient = (2 * ZL) / (ZL + Zin)

Where:

  • ZL is the load impedance.
  • Zin is the input impedance.

Insertion Loss

Insertion loss measures the power lost when a signal travels through a passive component, such as a cable or a section of a circuit. It’s expressed in decibels (dB) and is always a negative value, signifying a decrease in power.

Insertion Loss (dB) = Output Power - Input Power

It’s important to note that the output power is always less than the input power in this scenario.

Gain

Gain, on the other hand, describes the increase in power as a signal passes through an active component, like an amplifier. Like insertion loss, it is measured in dB, but it will be a positive value, reflecting an increase in power.

Gain (dB) = Output Power - Input Power

In this case, the output power is greater than the input power.

Reflection Coefficient

The reflection coefficient indicates the amount of power that bounces back from the DUT, either at the input or output port. This occurs when there’s an impedance mismatch between the network analyzer and the DUT.

  • b1 = Γin * a1 (Reflected wave at the input port)
  • a2 = ΓL * b2 (Reflected wave at the output port)

This is analogous to Ohm’s Law, where voltage is related to current and impedance (V=ZI). Here, we have:

  • Reflection Coefficient at Input = (Zin - Z0) / (Zin + Z0)
  • Reflection Coefficient at Output = (ZL - Z0) / (ZL + Z0)

Where:

  • Zin is the input impedance of the DUT.
  • ZL is the load impedance.
  • Z0 is the characteristic impedance of the network analyzer.

Return Loss

Return loss is another way of expressing reflection. It quantifies how much power is not reflected back from the DUT and is also measured in decibels (dB).

Return Loss = -20 Log [abs(Reflection coefficient)]

S-parameters

S-parameters (Scattering parameters) are a set of values that describe how a network interacts with signals. In the two-port DUT scenario as in Figure 1, S-parameters are used to define the input and output characteristics of the device.

The basic equations for a two-port network are:

  • b1 = (S11 _ a1) + (S12 _ a2)
  • b2 = (S21 _ a1) + (S22 _ a2)

Where:

  • S11 represents the input reflection coefficient.
  • S22 represents the output reflection coefficient.
  • S12 represents the isolation (reverse transmission).
  • S21 represents the insertion loss (forward transmission).

During typical measurements, the output port is terminated with a matched load (ZL = Z0), making a2 = 0. This simplifies the S-parameter equations to:

  • S11 = b1 / a1
  • S21 = b2 / a1

In this condition, S11 can be directly measured as the input reflection coefficient and S21 represents the transmission coefficient from port 1 to port 2. S22 can be similarly obtained, by inverting the port roles.
