Spring Control: Advantages and Disadvantages

This article explores the ins and outs of spring control mechanisms, outlining their benefits and drawbacks. Let’s dive in!

What is Spring Control?

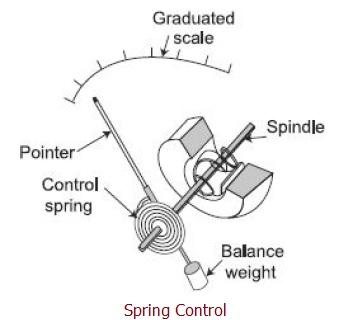

At its core, spring control utilizes a pair of carefully crafted springs, typically made from phosphor bronze, to manage the movement of a device’s moving parts. Here’s a breakdown:

• Dual Spring Setup: Two springs are attached to the moving system, wound in opposite directions. This clever design helps to counteract the effects of temperature changes.
• Anchoring: One end of each spring is securely fixed within the instrument, while the other end connects to the spindle.
• Multiple Roles: These springs serve a dual purpose: providing the necessary controlling torque and facilitating electrical connections to operate the coil.
• How it Works: When a deflecting torque is applied, the pointer moves. Simultaneously, one spring unwinds while the other twists, creating a controlling torque.
• Equilibrium: The pointer comes to rest when the deflecting and controlling torques reach equilibrium. Importantly, the controlling torque (Tc) is directly proportional to the angle of twist (θ).

• Material Matters: Spring materials must be non-magnetic, possess low-temperature coefficients, and have low specific resistance.

Benefits or Advantages of Spring Control

Spring control offers several key advantages:

• Portability: Its ability to function in any position makes it ideal for portable instruments.
• Lightweight Design: Spring control doesn’t add extra weight to the moving system, keeping things nice and light.
• Uniform Scale: These instruments are known for their uniform scale, making readings easy to interpret.

Drawbacks or Disadvantages of Spring Control

Despite the advantages, spring control also has its share of drawbacks:

• Limited Adjustability: Controlling torque can’t be adjusted without replacing the springs, which is a bit of a hassle.
• Temperature Sensitivity: Temperature changes can alter the spring lengths, which affects the controlling torque, making readings unreliable.
• Vulnerability to Stress: Accidental stresses can damage the delicate springs, leading to potential malfunctions.
• Temperature-Dependent Readings: Because the stiffness of the spring is influenced by temperature, the accuracy of the readings becomes temperature dependent.
• Zero Position Drift: Over time, the springs can develop inelastic yield, which can throw off the zero position of the moving system, requiring recalibration.

In summary, while spring control offers some benefits, its drawbacks relating to temperature sensitivity and adjustability must be carefully considered during instrument design and selection.
