Gravity Control in Measuring Instruments: Advantages and Disadvantages

Let’s explore the world of gravity control, a method used in various measuring instruments. We’ll delve into how it works, its strengths, and its weaknesses.

What is Gravity Control?

Gravity control is a technique that utilizes a small, adjustable weight attached to the spindle of an instrument. Think of it like a tiny pendulum that helps keep things in check.

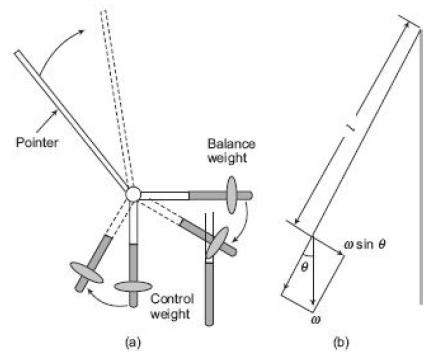

• How it Works: A small weight (let’s call it ‘W’) is connected to the instrument’s spindle. By changing the position of this weight on an arm, you can adjust the amount of controlling torque it provides.
• The Zero Point: When the instrument’s pointer is at its starting, or zero, position, the control weight hangs straight down. In this state, it doesn’t exert any torque.
• Under Deflection: When a deflecting force moves the pointer, the control weight moves in the opposite direction.
• Gravity’s Role: Due to gravity, the control weight tries to return to its original, vertical position. This generates a torque that counteracts the deflecting force.
• Equilibrium: The pointer eventually settles at a point where the controlling torque from gravity balances out the deflecting torque.

Advantages of Gravity Control

Gravity control offers several benefits, making it a practical choice in some applications:

• Cost-Effective: It’s a very inexpensive method, making it an attractive option when budget is a concern.
• Simplicity: The mechanism is straightforward and easy to understand, contributing to its reliability.
• Temperature Stability: The system isn’t affected by changes in temperature, ensuring consistent performance across different environments.
• Adjustable Torque: You can easily change the controlling torque by adjusting the weight’s position.
• Long-Lasting: Gravity control components don’t suffer from fatigue or distortion over time, contributing to a longer lifespan.

Disadvantages of Gravity Control

However, there are also some limitations to consider:

• Vertical Operation Only: The instrument must be kept in a vertical position for gravity control to work correctly. This restricts where you can use it.
• Non-Uniform Scale: The scale of the instrument isn’t uniform. This can make readings a little less straightforward compared to instruments with a linear scale.
• Heavier Moving System: The presence of the control weight adds to the overall weight of the moving parts of the instrument. This can impact its responsiveness in some cases.
