T&M Colorimeter vs. Spectrophotometer: Key Differences Explained
This article explores the differences between colorimeters and spectrophotometers, two instruments frequently used in colorimetry and spectrophotometry. While both are used to analyze light interaction with samples, they do so in different ways and for different purposes.
What is a Colorimeter?
A colorimeter is an instrument that compares the amount of light passing through an unknown solution to the amount of light passing through a pure solvent. Essentially, it measures how much light is absorbed or transmitted by a sample at specific wavelengths, providing information about the solution’s concentration or thickness.

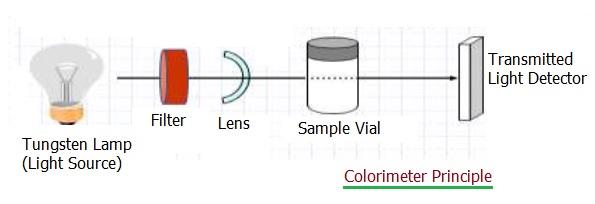

How a Colorimeter Works
The process generally involves:
- Light Source: A light source emits light.
- Filter: The light passes through a filter, which selects a specific range of wavelengths (often corresponding to a specific color).
- Lens: A lens concentrates the filtered light.
- Sample: The concentrated light is then directed through a sample held in a cuvette.
- Detector: A detector measures the intensity of the light that passes through the sample.
- Analysis: The difference between the intensity of the initial light and the transmitted light is calculated. This difference is related to the sample’s absorbance or transmittance.
Key Features of a Colorimeter:
- Compares light transmission through a solution and a solvent.
- Measures concentration or thickness of solutions.
- Determines the difference in intensity between incident and transmitted light.
- Uses filters to select specific wavelengths of light.
What is a Spectrophotometer?
A spectrophotometer measures the amount of light absorbed by a sample as a function of wavelength. It analyzes how a sample interacts with light across a wide spectrum, providing detailed information about its spectral properties.
How a Spectrophotometer Works
The process involves:
- Light Source: A light source emits light.
- Diffraction: The light beam is diffracted into a spectrum of wavelengths (using a prism or grating).
- Wavelength Selection: Specific wavelengths are selected for analysis.
- Sample: The selected light is directed through a sample.
- Detector: A detector (often a CCD) measures the intensity of the transmitted light at each wavelength.
- Analysis: The resulting data is displayed as a graph, showing absorbance or transmittance as a function of wavelength.
Key Features of a Spectrophotometer:
- Measures light absorption as a function of wavelength.
- Diffracts light into a spectrum of wavelengths.
- Measures concentration of solutions.
- Used for color determination in the range of 380 to 700 nm (visible light).
- Identifies organic compounds by determining their absorption maxima.
Colorimeter vs. Spectrophotometer: Key Differences
| Feature | Colorimeter | Spectrophotometer |
|---|---|---|
| Analysis Type | Psychophysical analysis, correlates with human eye-brain perception. | Physical analysis, provides wavelength by wavelength spectral analysis, without direct human interpretation. |
| Data Provided | Tristimulus values (XYZ, L, a, b, etc.) directly read. | Spectral data, which can indirectly calculate psychophysical information. |
| Components | Sensor and data processor. | Sensor plus data processor or computer with application software. |
| Illuminant/Observer | Usually a single illuminant/observer combination (e.g., C/2°). | Multiple illuminant/observer combinations available for calculating tristimulus data and metamerism index. |
| Wavelength Isolation | Isolates broad band of wavelengths using tristimulus absorption filters. | Isolates narrow band of wavelengths using prism, grating, or interference filter. |
| Complexity | Rugged and less complex. | More complex compared to colorimeters. |
| Usage | Routine comparisons of similar colors and adjustment of small color differences under constant conditions. | Color formulation, measurement of metamerism, and variable illuminant/observer conditions. |
| Examples of Instruments | HunterLab D25 series, ColorTrend HT. | HunterLab ColorFlexes, COlorQuests, LabScans, MiniScans, SpectraProbes, UltraScans. |
In Summary
Both colorimeters and spectrophotometers are valuable tools for analyzing color and light interaction. Colorimeters provide quick and easy measurements for comparing colors under controlled conditions, while spectrophotometers provide detailed spectral information for more complex analysis and color formulation. Choosing between the two depends on the specific application and the level of detail required.
