CT Scan vs. MRI Scan vs. Ultrasound Scan: A Detailed Comparison

This article explores the differences between CT scans, MRI scans, and ultrasound scans. It highlights the principles behind each technology, the equipment used, their respective advantages and disadvantages.

What is a CT Scan?

CT stands for Computerized Tomography. This technology uses X-rays. A CT scan machine takes numerous X-ray images from different angles and a computer then constructs a 3D picture of the inside of the body.

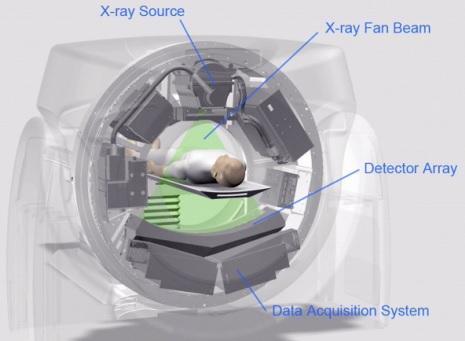

The CT scanner features a moving platform (or “cache”) where patients lie in a sleeping position. This platform slowly moves during the scanning process. Typically, two scans are performed: the first captures a general image, and the second provides a more detailed view. A complete CT scan usually takes around 5 minutes.

Advantages of CT Scans

• Better for visualizing bony lesions.
• Faster than MRI scans, generally taking 5-10 minutes.
• Medium cost compared to other imaging techniques.
• Small risk of irradiation.

Disadvantages of CT Scans

• Poor resolution of demyelinating lesions.
• Involves a risk due to ionizing radiation.
• Sensitive to acute hemorrhages.

What is an MRI Scan?

MRI stands for Magnetic Resonance Imaging. This technology relies on magnetism. It’s a more recent advancement compared to CT scans. MRI uses magnetism to create a 3D image of the body’s interior.

Similar to CT scanners, MRI machines have a moving platform. Patients lie down on this platform and are moved into a narrow cylinder. Magnets within the cylinder generate a strong magnetic field around the patient’s body. The cylinder is somewhat narrower compared to CT scanners. It’s crucial to remove all metallic objects from the body before an MRI scan. MRI scans can take around 30 minutes to complete.

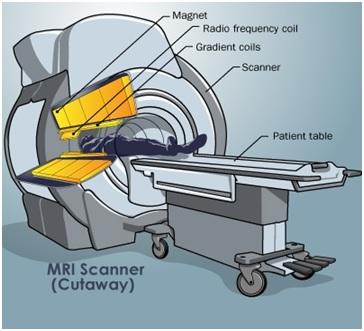

Key components of an MRI scanner include:

• A powerful permanent magnet.
• Gradient coils: these generate a variable magnetic field.
• Radio frequency (RF) coils: these produce radio waves.
• Scanner: this detects energy emitted from the body.

Advantages of MRI Scans

• No radiation is used, making it a safer option.
• Provides better images compared to CT scans, useful for differentiating between different tissue types.

Disadvantages of MRI Scans

• One of the most expensive scanning techniques.
• Requires careful attention to remove metal objects.
• Electronic equipment should be kept away, as the strong magnetic fields can damage them.

What is an Ultrasound Scan?

Ultrasound scans are based on ultrasound imaging and the piezoelectric effect. They are used to diagnose causes of pain, swelling, and infection in the body’s internal parts and organs. They can help in biopsies, diagnose heart conditions and assess damage after a heart attack, and are commonly used to examine babies in pregnant women.

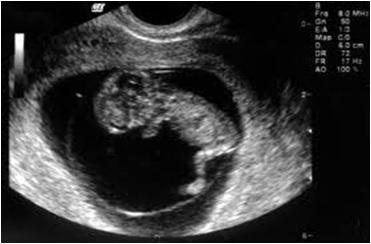

The process involves producing sound waves to create pictures of the body’s interior. Patients lie down, and a radiologist manually moves a small probe over the body to capture real-time images.

During the scan, ultrasound waves are directed into the body and reflected by tissues. These reflected waves vary in time and intensity, and a piezoelectric crystal in the probe converts the mechanical vibrations into a varying electric current. This current helps to produce an image on the ultrasound scanner’s screen.

Since ultrasound scans don’t use radiation, they are generally considered very safe and painless.

Advantages of Ultrasound Scans

• Safe, noninvasive, and doesn’t use ionizing radiation.
• Images are captured and displayed in real-time, allowing for adjustments based on the movement of internal body parts.
• Shows clear pictures of soft tissues, which are not as visible in CT scans.
• Ideal for examining unborn babies during pregnancies.

Disadvantages of Ultrasound Scans

• Not suitable for deep body scans, as ultrasound cannot penetrate bone and large amounts of tissue effectively.
• Not suitable for organs obscured by bowel, as ultrasound waves are disrupted by gas or air.

Difference between CT Scan, MRI Scan, and Ultrasound Scan

The following table summarizes the key differences between CT scans, MRI scans, and ultrasound scans:
