This page delves into the basics of Bit Error Rate (BER) and introduces the Bit Error Rate Tester from Tektronix. We’ll also touch upon other vendors who offer Bit Error Rate testing equipment.
Bit Error Rate is fundamentally the ratio of the number of erroneous bits received compared to the total number of bits that were transmitted. Simply put:
BER = Bits in error / Total bits
There are several methods to determine the bit error rate. The most reliable approach involves assessing the quality of the received bits using an eye diagram. This technique is commonly used in most Bit Error Rate Testers.

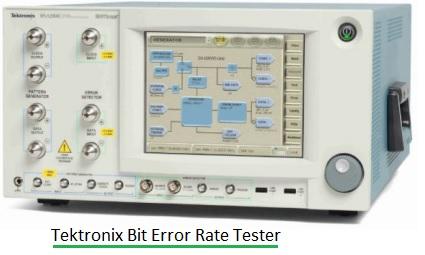

Tektronix Bit Error Rate Tester
The Tektronix BERTScope BSA Series is a notable example of a Bit Error Rate Tester. Here are some of its key technical features:
- Bit Error rate measurements up to 28.6 Gb/sec
- Integrated Eye diagram analysis with BER correlation
- Stressed receiver sensitivity tests
- Clock recovery jitter tolerance tests
- Electrical stressed eye tests for various interface types such as PCI, SATA, USB, etc.
Other Vendors of Bit Error Rate Testers
The following table lists some other vendors that offer Bit Error Rate Testers:
| Vendor or Manufacturer | Bit Error Rate Tester |
|---|---|
| Keysight Technologies | Various products available to test BER up to 32 Gb/sec |
| LUCEO TECHNOLOGIES GmbH | BER testers model EPG428 and EED428 are available. |
| Anritsu Corporation | BERT MP8931A |
| JSDU | XGIG-BERT |
| EXFO | QSFP28 BER pattern generator and pocket BERT |
